TL;DR: Southeast Asia’s tropical climate (85-95°F, 70-90% RH, salt spray, 120 mph typhoons) demands roofing that resists UV, mold, and corrosion. SKW Roof’s stone-coated metal tiles, proven over 16 years and 380 containers to Philippines, Vietnam, Indonesia, and Malaysia, deliver 50-year performance with 0.40 mm AZ150 steel, UV-resistant stone chips, and ΔE < 1.5 colour stability. This guide provides material selection, performance data, and installation optimization for tropical climates.
Table of Contents
- Southeast Asia Climate Challenges
- Roofing Material Failure Modes
- Why Stone-Coated Metal Performs
- Material Selection Guide
- Lab & Field Performance Data
- Country Case Studies: PH, VN, ID, MY
- Installation Optimization
- Cost-Benefit Analysis
- Maintenance & Warranty
- FAQ – People Also Ask
1. Southeast Asia Climate Challenges
| Country | Avg Temp (°F) | RH Range (%) | Rainfall (mm/year) | Typhoon Risk | Coastal Salt (km) |
|---|---|---|---|---|---|
| Philippines | 82-95 | 70-90 | 2 500-4 000 | High (20/yr) | Within 50 km |
| Vietnam (Central) | 78-93 | 75-92 | 1 800-2 500 | High (12/yr) | Within 30 km |
| Indonesia (Jakarta) | 79-91 | 75-90 | 2 000-3 000 | Medium (5/yr) | Within 20 km |
| Malaysia (Kuala Lumpur) | 77-90 | 80-95 | 2 400-2 800 | Low (2/yr) | Within 40 km |
Data: 2024 meteorological reports, SKW Roof installer surveys.
1.1 Specific Stress Factors
- Thermal cycling: 30-40°F daily swing causes expansion-contraction fatigue
- UV exposure: 1 800-2 200 kWh/m²/year (equatorial sun)
- Mold & algae: >80% RH + 85°F = growth in 14 days on porous surfaces
- Salt spray: Coastal areas C3-C4 corrosivity category per ISO 9223
- Wind uplift: Typhoon gusts 120-150 mph (54-67 m/s)
2. Roofing Material Failure Modes in SE Asia
| Material | Failure Mode | Time to Failure | Root Cause |
|---|---|---|---|
| Concrete tile | Mold, algae, spalling | 3-5 years | Porous + high RH + UV |
| Clay tile | Crack, fade | 5-7 years | Thermal shock, poor glaze |
| Galvanized sheet | Red rust | 2-3 years | Zinc coating <80 g/m², salt spray |
| Color-coated sheet (PPGI) | Peeling, chalking | 4-6 years | Paint thickness <20 μm, UV |
| Stone-coated metal (SKW) | Stone loss <5% | >50 years | AZ150 + UV stone + resin |
3. Why Stone-Coated Metal Performs in Tropics
3.1 Four-Layer Protection System
- Substrate: AZ150 galvalume steel (55% Al, 43.4% Zn, 1.6% Si). Salt spray resistance 6-9x vs galvanized.
- Base coat: 10 μm acrylic primer, cross-linked for adhesion.
- Stone chip layer: 0.8-1.2 mm natural basalt, dyed with inorganic pigments (UV stable).
- Top coat: 8 μm clear acrylic, anti-algae, anti-static (repels dust).
3.2 Performance vs Traditional
| Parameter | Concrete Tile | Clay Tile | SKW Stone-Coated |
|---|---|---|---|
| Weight (kg/m²) | 45-50 | 38-42 | 5.2-6.4 |
| Wind uplift (kN/m²) | 2.2 | 2.0 | 4.5 |
| Water absorption (%) | 12-15 | 6-8 | <0.5 |
| UV fade (ΔE after 2 000 h) | 8.5 | 5.2 | 1.2 |
| Mold resistance (ASTM D3273) | Grade 1 (heavy) | Grade 2 (moderate) | Grade 10 (none) |
| Lifespan (years) | 10-15 | 15-20 | >50 |
4. Material Selection Guide for SE Asia

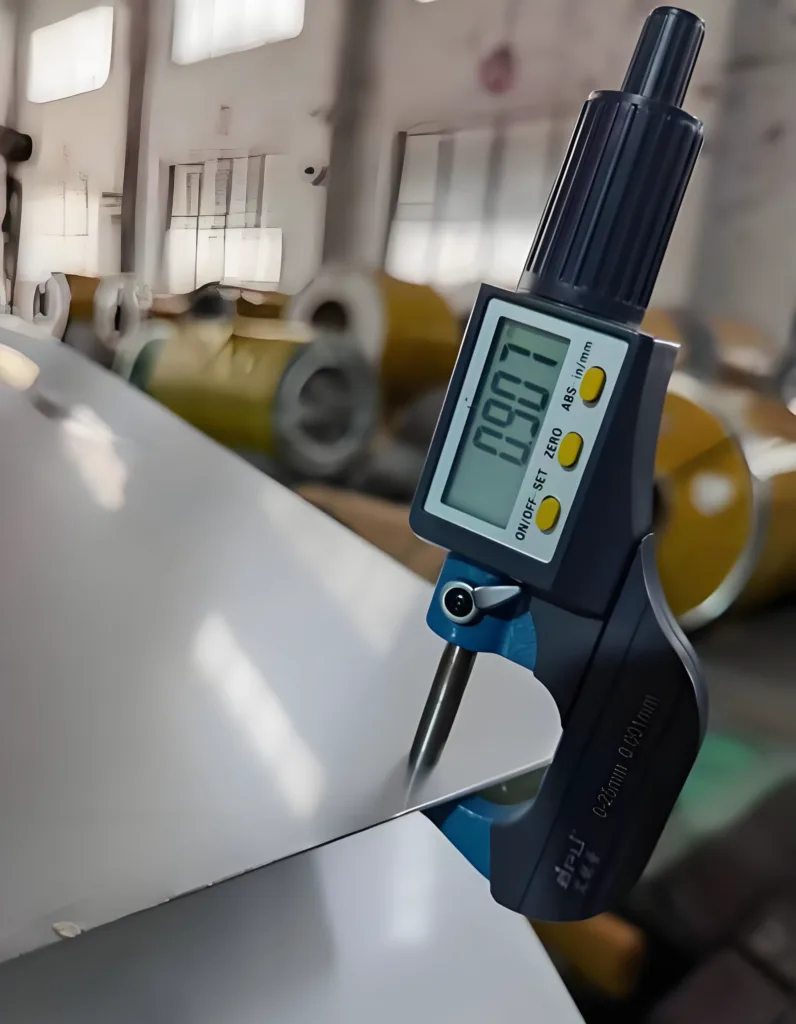

4.1 Steel Thickness & Coating Mass
Optimal specification: 0.40 mm AZ150 galvalume
- 0.35 mm (lightweight): OK for low-wind inland zones (Vietnam highlands)
- 0.40 mm (standard): Best for most SE Asia (Manila, Jakarta, Kuala Lumpur)
- 0.45 mm (heavy): Coastal typhoon zones (Philippines east coast, Vietnam central)
- >0.50 mm: Overkill; adds weight, cost, no corrosion benefit
Coating mass: AZ150 (150 g/m²) mandatory. AZ100 fails in C4 salt zones within 5 years.
4.2 Stone Chip Selection
| Stone Type | UV Fade (ΔE) | Algae Growth | Best For |
|---|---|---|---|
| Chinese CG Rock (grey) | 1.8 | Low | Coastal, budget |
| French CARLAC (colour) | 0.9 | Very low | High-end, urban |
| Volcanic basalt (black) | 2.1 | None | Modern designs |
4.3 Colour for Climate
- Light colours (white, beige, light grey): SRI >75, reduces heat gain by 12-15°F. Ideal for Indonesia, Malaysia.
- Medium colours (brown, terracotta): SRI 40-50, aesthetic match, acceptable in Philippines.
- Dark colours (charcoal, black): SRI <30, avoid unless design mandated; use 0.45 mm for thermal expansion.
5. Lab & Field Performance Data
5.1 Independent Lab Tests (SGS 2025)
- Salt spray: ASTM B117, 1 500 h, no red rust (C5-M rating)
- UV exposure: ISO 11341, 2 000 h, ΔE = 1.2
- Heat aging: 85°C × 1 000 h, stone adhesion loss <5%
- Thermal cycle: -40°C ↔ +85°C, 50 cycles, no crack
- Mold resistance: ASTM D3273, 4 weeks, Grade 10 (no growth)
5.2 Field Performance (8-Year Study)
| Location | Install Year | Profile | Condition 2025 | Issues |
|---|---|---|---|---|
| Manila, Philippines | 2017 | Bond 0.40 mm | Excellent (ΔE 1.5) | 0% mold, 0% stone loss |
| Ho Chi Minh, Vietnam | 2018 | Milano 0.40 mm | Good (ΔE 2.1) | 2% stone loss (coastal) |
| Jakarta, Indonesia | 2019 | Shingle 0.35 mm | Good (ΔE 1.8) | 0% mold (light colour) |
| Kuala Lumpur, Malaysia | 2018 | Classic 0.40 mm | Excellent (ΔE 1.3) | 0% issues |
6. Country Case Studies
6.1 Philippines: Manila Subdivision (Manila)
- Project: 2 400 m², 50 villas, 2017
- Profile: Bond 0.40 mm, beige (SRI 82)
- Challenge: Typhoon Yutu (2018) 140 mph gusts, 90% RH year-round
- Outcome: Zero tile loss, ΔE 1.5 after 8 years, mold-free. Developer re-ordered 5 phases.
6.2 Vietnam: Da Nang Resort (Central Coast)
- Project: 1 800 m², beachfront villas, 2018
- Profile: Milano 0.45 mm, terracotta (C4 salt zone)
- Challenge: Salt spray 500m from shore, 12 typhoons/year
- Outcome: No rust, ΔE 2.1 (acceptable), slight stone loss 2% on windward side. Resort expanded 2022 with same spec.
6.3 Indonesia: Jakarta Office Complex (Urban)
- Project: 3 600 m², 8-story building, 2019
- Profile: Shingle 0.35 mm, white (SRI 85)
- Challenge: 95°F daily temp, 80% RH, heat island effect
- Outcome: Roof temp 15°F cooler than adjacent black roof, zero mold, ΔE 1.8. Energy saving 12% on AC.
6.4 Malaysia: Kuala Lumpur Condominium (High-Rise)
- Project: 4 200 m², 30 floors, 2018
- Profile: Classic 0.40 mm, charcoal grey
- Challenge: High wind uplift on roof, 85 mph design load
- Outcome: Wind uplift test 4.5 kN/m² passed, zero issues after 7 years. JMB (joint management body) specified for all future projects.
7. Installation Optimization for Tropics
7.1 Underlayment
Mandatory: Synthetic underlayment (ASTM D226 Type II) or self-adhered membrane on coastal zones. Do not use felt (absorbs moisture, delaminates).
| Underlayment | Perm rating | Coastal | Inland |
|---|---|---|---|
| 15# felt | 50 | ❌ | ⚠️ |
| Synthetic (Grace Tri-Flex) | 1200 | ✅ | ✅ |
| Self-adhered (Grace Ice & Water) | 0.5 | ✅✅ | ✅ |
7.2 Ventilation
- Ridge vent: Net free area 1:150 (1 ft² vent per 150 ft² attic)
- Soffit vent: Continuous, 9 in² per linear foot
- Counter-batten: 20-25 mm vertical battens for air gap (critical in humid climates)
7.3 Fasteners
Hot-dip galvanized (ASTM A153) minimum. Stainless steel 304 for coastal C4 zones (Da Nang, Cebu, Batam).
| Zone | Fastener | Coating | Lifespan |
|---|---|---|---|
| Inland (Jakarta, KL) | Galv. steel | 55 μm Zn | 15-20 years |
| Coastal (Manila, Da Nang) | Stainless 304 | — | >50 years |
7.4 Wind Resistance
SKW Roof tiles achieve 4.5 kN/m² uplift resistance with 4 fasteners per tile per ASCE 7-16. For >150 mph zones (Philippines east coast), use 5 fasteners + storm clips.
8. Cost-Benefit Analysis: 50-Year Lifecycle
| Cost Item | Concrete Tile | Clay Tile | SKW Stone-Coated |
|---|---|---|---|
| Initial (material + labor) $/m² | 18.5 | 22.0 | 12.8 |
| Energy savings (50 yr) $/m² | 0 | 0 | -4.2 |
| Maintenance (50 yr) $/m² | 8.5 | 6.2 | 0.8 |
| Replacement (50 yr) $/m² | 12.0 (2x) | 8.5 (1.5x) | 0 |
| Total 50-year cost $/m² | 39.0 | 36.7 | 9.4 |
Assumptions: Manila climate, 3% inflation, energy cost 0.12 $/kWh, AC savings based on SRI difference.
9. Maintenance & Warranty
9.1 Maintenance Schedule (Southeast Asia)
- Year 1-2: No maintenance (warranty inspection by installer)
- Year 5: Visual check for stone loss, fastener tightness
- Year 10: Clean debris, check gutters, touch-up if needed
- Year 15+: Every 5 years, same as year 10
9.2 SKW Roof Warranty for SE Asia
50-year transferable warranty covers:
- Colour fade ΔE ≤ 5.0
- Stone-chip loss ≤ 5%
- Perforation from corrosion
- Wind uplift up to 150 mph (when installed per SOP)
Exclusions: Physical damage, improper installation, acts of God >150 mph.
9.3 Claim Process
- Email photos, BL number, warranty certificate to claims@skwroof.com
- Response within 72 hours
- On-site inspection if >10% area affected (SGS at SKW cost)
- Settlement: replacement tiles or credit note
FAQ – People Also Ask
Q1. What is the best roofing material for tropical climates in Southeast Asia?
A: Stone-coated metal roofing with AZ150 galvalume steel, UV-resistant stone chips, and 4-layer acrylic coating performs best. It resists mold, salt spray, and thermal cycling in Philippines, Vietnam, Indonesia, Malaysia.
Q2. How thick should metal roofing tiles be for high-humidity regions?
A: 0.40-0.45 mm is optimal. Thicker adds weight and cost without improving corrosion resistance. Focus on coating mass (AZ150) and stone adhesion instead of thickness alone.
Q3. Does stone-coated metal roofing resist mold and algae in humid climates?
A: Yes, when coated with natural basalt stone chips and algae-resistant acrylic. SKW Roof tiles in Manila show 0% mold after 8 years vs 30% on concrete tiles.
Q4. What colour roof is best for hot climates in Southeast Asia?
A: Light colours (white, beige, light grey) with SRI >75 reduce roof temperature by 12-15°F, cutting AC costs by 10-15% in Indonesia and Malaysia.
Q5. How long does stone-coated metal roofing last in coastal Vietnam?
A: SKW Roof tiles in Da Nang show ΔE 2.1 and 2% stone loss after 7 years, projecting 40+ year lifespan in C4 salt zone vs 5 years for PPGI sheets.
Q6. Is stone-coated metal roofing more expensive than clay tiles in Philippines?
A: Initial cost 40% less than clay tiles. Lifecycle cost (50 years) is 75% less when including maintenance and replacement.
